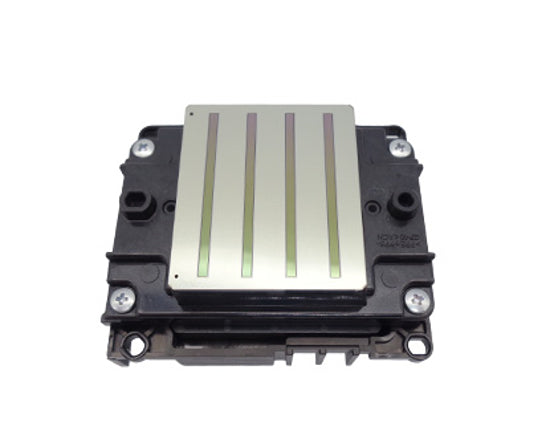

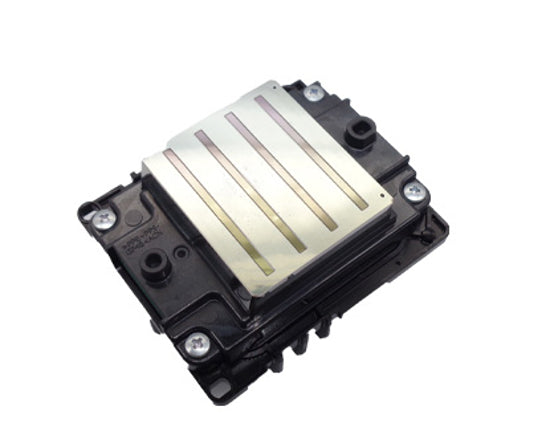

Epson I3200-A1 (4) Series Printhead - I3200-A1

Genuine Epson I3200-A1 Water Printhead – 3,200 Nozzle Aqueous Printhead

The Epson I3200-A1 Water Printhead is a genuine Epson PrecisionCore MicroTFP printhead designed for high-productivity digital printing applications using aqueous, water-based inks. With a 1.33-inch effective print width, 3,200 nozzles, and 600 npi high-density resolution, the I3200-A1 delivers a strong combination of productivity, image quality, and reliable ink placement.

The printhead is supplied with the manifold and is designed specifically for printer systems engineered to use the Epson I3200-A1 Water configuration.

Epson Part Number: I3200-A1
Roland Part Number: 1000028697
Manufacturer: Epson
Printhead Technology: PrecisionCore MicroTFP
Ink Type: Aqueous / Water-Based
Printhead Configuration: 4-Color

Key Features

• Genuine Epson I3200-A1 Water printhead
• 3,200-nozzle architecture with 8 rows
• 600 npi high-density resolution
• 1.33-inch (33.8 mm) effective print width
• PrecisionCore MicroTFP printhead technology
• Designed for aqueous / water-based inks
• Supports up to 4 ink colors per printhead
• Supplied with the manifold
• Variable droplet technology for detailed and smooth image reproduction
• Suitable for compatible high-productivity digital printing and DTF systems

Important: I3200-A1 vs. I3200-A1 HD Compatibility

The Epson I3200-A1 and Epson I3200-A1 HD may have similar physical printhead structures, but they are not interchangeable.

Each printer is designed to operate with a specific printhead configuration. Installing the wrong version may result in compatibility or performance issues.

Epson I3200-A1 Water

• Supports up to 4 ink colors
• Features 4 manifold inputs (nipples) for damper connections
• Each color is delivered through a pair of nozzle rows
• Designed for compatible 4-color aqueous printing configurations

Epson I3200-A1 HD

• Supports up to 8 ink colors
• Features 8 manifold inputs (nipples) for damper connections
• Each color is delivered through a single nozzle row
• Designed for compatible 8-color printing configurations

Important: Do not substitute an I3200-A1 HD printhead for an I3200-A1 printhead, or vice versa. Always verify the exact printhead configuration required by your printer before ordering.

Product Specifications

Droplet Ejection Performance

The Epson I3200-A1 supports multiple droplet sizes for precise ink placement and high-quality image reproduction:

• Binary: 6 pl at 43.2 kHz
• 3-Level Grayscale: 6.3 / 12.3 pl at 21.6 kHz
• 4-Level Grayscale: 3.8 / 6.1 / 9.4 pl at 21.6 kHz

Why Choose the Epson I3200-A1 Water Printhead?

3,200-Nozzle Architecture

The Epson I3200-A1 features 3,200 nozzles arranged across eight rows, providing high nozzle density for efficient, high-productivity printing.

PrecisionCore MicroTFP Technology

Epson's PrecisionCore MicroTFP technology is designed to provide precise and consistent ink droplet placement for reliable image reproduction.

600 npi High-Density Resolution

With up to 600 npi resolution across two nozzle rows, the I3200-A1 supports detailed output and smooth image reproduction in compatible printing systems.

Variable Droplet Technology

Multiple droplet sizes help support fine detail, smoother gradients, accurate ink placement, and consistent tonal transitions.

1.33-Inch Effective Print Width

The 33.8 mm (1.33-inch) effective print width makes the I3200-A1 suitable for high-productivity, multi-printhead configurations.

Four-Color Capability

The I3200-A1 Water configuration supports up to four ink colors per printhead, allowing compatible printer manufacturers to configure systems for CMYK, white, expanded-gamut, or other supported aqueous ink configurations.

Genuine Epson Replacement

This is a genuine Epson I3200-A1 printhead, designed for printer systems specifically engineered around the I3200-A1 configuration.

Printer Compatibility

The Epson I3200-A1 Water printhead is used in a wide range of compatible DTF and digital printing systems. Compatibility can vary by printer configuration, firmware, electronics, ink system, and manifold setup.

Compatible or commonly supported models include:

• Allwin AW-EP18
• Allwin AW-EP19
• Coldesi 24H2 DTF
• Coldesi 24H4 DTF
• Fedar FD1900
• Fedar FD5193E
• Fedar FD5194E
• Fedar FD5196E
• Fedar FD5198E
• Fedar FD60
• Fedar FD61915E-A
• Fedar FD6194E
• Fedar FD6196E
• Fedar FD6198E-A
• Fedar FD65-2
• Fedar FD70
• Fedar FD70-5
• Infiniti FY-2560
• Kingdom DTF / Andemes Knight A1
• LINKO / DTFLinko A602
• LINKO / DTFLinko B8048
• LINKO / DTFLinko K-60
• LINKO / DTFLinko K-607
• LINKO / DTFLinko KM-602
• OKAI OK-H6002
• Oric AINKJET DTF Super
• Oric A3 Mini320
• Oric A-6202
• Oric A-6203
• Oric A-6204
• Oric OR-1601TX
• Oric OR-1602TX
• Oric OR-1802TX
• Oric OR-1912TX PRO
• Oric OR-1915 TX
• Oric OR-1916 TX
• Oric OR-3215 TX
• Oric OR-3216 TX
• Oric OR-3224 TX
• Oric OR-620 MAX
• Oric OR-620 Pro
• Oric OR-6202
• Oric OR-6203
• Oric OR-6204
• Oric OR-7602
• Oric OR-7604HT
• Oric OR-A3 Mini330 DTF
• Potry BC-0302X-HTO1
• Potry HT-0604IA-01
• Procolored K8
• Procolored P13
• Rainbow Nova 6204
• Roland TY-300
• Sinocolor DTF-400A
• Sinocolor WJ-240S
• Sublistar DTF-1202 Star IV
• Sublistar DTF-1203 Star IV
• Sublistar DTF-1204 Star IV
• Sublistar DTF-1205 Star IV
• Sublistar DTF-300 Ultra A
• Sublistar DTF-450 Ultra A
• Sublistar DTF-6002 Lite
• Sublistar DTF-6002 Star IV
• Sublistar DTF-6003 Lite
• Sublistar DTF-6003 Star IV
• Sublistar DTF-6004 Flex
• Sublistar DTF-6004 Lite
• Sublistar DTF-6004 Star IV
• Sublistar DTF-6004G
• Sublistar DTF-6005 Star IV
• Sublistar DTF-6005 Turbo
• Sublistar DTF-6007 Turbo
• Sublistar DTF-6008 Turbo
• Sublistar DTF-mini 600 Ultra
• Sublistar DTG-4050II
• Sublistar SUB-1804TX
• Sublistar SUB-1806TX
• Sublistar SUB-1808TX
• Sublistar SUB-2215TX
• Sublistar SUB-2608TX
• Sublistar SUB-2615TX
• Sublistar SUB-3208TX
• Sublistar Subli-1924TX
• Titanjet I1600/I3200 DTF Series
• Xin Flying I3200 DTF Series
• Xuli X6-1804IS
• Xuli X6-1806IS
• Xuli X6-1806IS S500
• Yindu Digital Industrial DTF I3200 Series
• Yite Technology Industrial DTF 5-Head I3200
• Yuxunda DTF-300 Pro Max
• Yuxunda DTF-300 Plus
• Yuxunda DTF-400 Pro Max
• Yuxunda DTF-400 Plus
• Yuxunda DTF-600 Pro Max
• DTF Station Prestige L2
• DTF Station Prestige XL2
• CobraFlex CF-24 with Epson I3200-A1 configuration
• ColDesi DigitalHeat FX DTF-24H2 / 24H4 / 24H5 / 30H2
• Hanrun PRO-A600
• Other compatible I3200-based DTF and digital printing systems

Compatibility Note: The list above is provided as a reference for compatible or commonly supported configurations. Always confirm the exact printhead model, ink type, manifold configuration, and printer specification before ordering.

Installation Recommendation

We strongly recommend replacing the printhead cables when installing a new printhead. New cables can help reduce the risk of issues associated with worn, damaged, or previously compromised cables.

Printhead installation should be performed by a qualified technician or an experienced printer operator following the printer manufacturer's recommended installation and maintenance procedures.

Warranty & Return Policy

Due to the nature of DTF inks and other printing fluids, printheads are considered consumable/service components.

Once the printhead has been installed or exposed to ink, we cannot accept returns, exchanges, or refunds. All sales are final after installation or use.

Please verify the exact printhead model, part number, printer compatibility, and configuration before installation.

If you are unsure whether the Epson I3200-A1 Water printhead is correct for your printer, please contact us before placing your order.
