Epson I3200-U1 UV Printhead
Features
- Anti-clog automatic white ink circulation
- Epson printhead with automated cleaning cycle
- One-click ink setup — no syringes or funnels
- Includes remote setup support from our technician
Secure checkout
SKU: Head-i3200U1
About this product

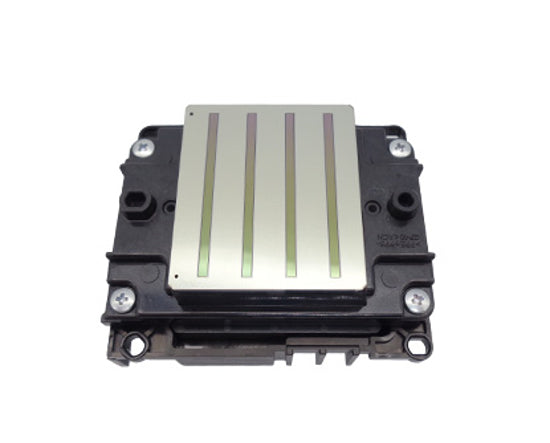

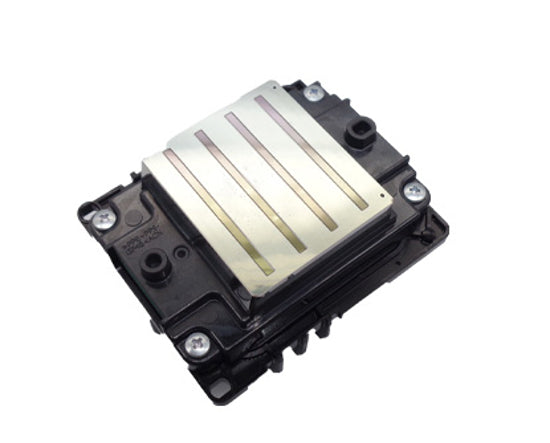

Genuine Epson I3200-U1 UV Printhead – 3,200 Nozzle Unlocked Printhead
The Epson I3200-U1 UV Printhead is a high-productivity, 1.33-inch-wide PrecisionCore MicroTFP printhead designed specifically for compatible UV ink printing systems. With 3,200 nozzles, 600 npi high-density resolution, and an effective print width of 33.8 mm (1.33 inches), the I3200-U1 delivers a combination of high productivity, detailed image quality, and precise ink placement.
This unlocked Epson I3200-U1 UV printhead is designed for compatible UV printing applications and is also known in some markets as the Epson I3200-S1 HD.
Manufacturer: Epson
Manufacturer Part Number: I3200-U1
Printhead Type: PrecisionCore MicroTFP
Ink Type: UV Ink
Configuration: Unlocked
Key Features
- Genuine Epson I3200-U1 UV printhead
- 3,200-nozzle architecture with 8 nozzle rows
- 600 npi high-density resolution
- 1.33-inch (33.8 mm) effective print width
- PrecisionCore MicroTFP technology
- Designed for compatible UV ink printing systems
- Unlocked printhead
- Variable droplet technology for detailed image reproduction and smooth tonal transitions
- Also known as Epson I3200-S1 HD in certain applications and markets
- Manufactured in Japan
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Epson |
| Manufacturer Part Number | I3200-U1 |
| Printhead Family | Epson I3200-U1 UV |
| Alternate Name | I3200-S1 HD |
| Ink Type | UV |
| Technology | PrecisionCore MicroTFP |
| Printhead Status | Unlocked |
| Nozzle Count | 3,200 |
| Nozzle Rows | 8 rows |
| Nozzle Pitch | 1/300 inch |
| Nozzle Resolution | 300 npi per row / 600 npi for 2 rows |
| Maximum Ink Colors | 4 colors |
| Effective Print Width | 33.8 mm / 1.33 inches |
| Dimensions | 69.1 × 59.4 × 35.6 mm |
| Weight | Approximately 82 g |
| Viscosity Range | 5–7 mPa·s |
| Country of Origin | Japan |
| Manufacturer Warranty | Included |
Droplet Ejection Performance
The Epson I3200-U1 supports multiple droplet sizes for precise UV ink placement:
- Binary: 5 pl at 43.2 kHz
- 3-Level Grayscale: 6 / 12.5 pl at 21.6 kHz
- 4-Level Grayscale: 3.8 / 6.2 / 9.3 pl at 21.6 kHz
Why Choose the Epson I3200-U1 UV Printhead?
3,200-Nozzle Architecture
The 3,200-nozzle configuration provides high nozzle density for efficient, high-productivity UV printing applications.
PrecisionCore MicroTFP Technology
Epson's PrecisionCore MicroTFP technology is engineered for precise and consistent ink droplet placement, supporting detailed and reliable print output.
600 npi High-Density Resolution
With up to 600 npi resolution across two nozzle rows, the I3200-U1 supports detailed graphics and smooth image reproduction.
1.33-Inch Effective Print Width
The 33.8 mm (1.33-inch) effective print width makes the I3200-U1 suitable for multi-printhead configurations used in professional UV printing systems.
Variable Droplet Technology
Multiple droplet sizes provide control over ink placement and help produce fine details, smoother gradients, and consistent tonal transitions.
Unlocked UV Printhead
The unlocked I3200-U1 is intended for compatible printer systems designed to operate with an unlocked Epson UV printhead configuration.
Printer Compatibility
The Epson I3200-U1 UV printhead is used in a variety of compatible UV printing systems. Compatibility depends on the printer's electrical configuration, firmware, ink system, printhead configuration, and manufacturer specifications.
Compatible or commonly supported printer models include:
- Audley ADL6003UV
- Infiniti FY-1800H
- Infiniti FY-3200MS/I4
- Infiniti FY-A3701
- Infiniti FY-A3701F
- Infiniti FY-UV1603
- Infiniti FY-UV1800W
- Infiniti FY-UV1803
- Nocai NC-Cyclone-400
- Nocai NC-UV0609MAX
- Signstar BT-1804UN
- Signstar UV-6090
- Signstar UX-1802
- Sinocolor FB-0906D
- Sinocolor FB-2513S
- Sinocolor HUV-2000S
- Sinocolor HUV-2600S
- Sinocolor HUV-3200S
- Sinocolor UE-2000D
- Sinocolor UR-2000S
- Sinocolor UR-3200S
- Sinocolor UR-5000S
- Sinocolor UV-1260S
- Sinocolor UV-740S
- Sublistar UV 6090F Turbo
- Sublistar UV-300VB
- Sublistar UV-604
- Sublistar UV-60R Star IV
- Sublistar UV-60R Turbo
- Textek UV-F604
- Xante X-33
Compatibility Note: The list above is provided as a reference. Always verify the exact printhead model and configuration required by your printer before ordering. The Epson I3200-U1 UV is not automatically compatible with every I3200-series printer.
Installation Recommendation
We recommend replacing the printhead cables when installing a new printhead. Using worn, damaged, or previously compromised cables may increase the risk of electrical issues or damage to the new printhead.
Professional installation is recommended. Always follow the printer manufacturer's installation, cleaning, ink-loading, and maintenance procedures.
Warranty & Return Policy
Manufacturer Warranty: This printhead carries a manufacturer warranty, subject to the applicable manufacturer's warranty terms.
Due to the nature of printing inks and fluids, printheads are considered consumable/service components.
Once the printhead has been installed or exposed to ink, we cannot accept returns, exchanges, or refunds. All sales are final after installation or use.
Please verify the exact printhead model, part number, printer compatibility, and ink configuration before installation.
If you are unsure whether the Epson I3200-U1 UV printhead is compatible with your printer, please contact us before placing your order.
