Epson I1600-A1 Printhead
Features
- Anti-clog automatic white ink circulation
- Epson printhead with automated cleaning cycle
- One-click ink setup — no syringes or funnels
- Includes remote setup support from our technician
Secure checkout
SKU: head-i1600A1
About this product

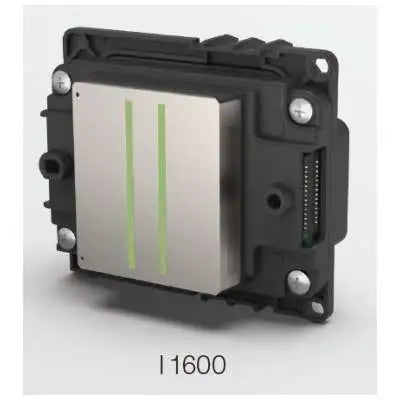

Genuine Epson I1600-A1 Water Printhead – 1,600 Nozzle Unlocked Printhead
The Epson I1600-A1 Water Printhead is a genuine Epson PrecisionCore MicroTFP printhead designed for compatible aqueous and water-based ink printing systems. With a 1.33-inch effective print width, 1,600 nozzles, and up to 600 npi high-density resolution, the I1600-A1 provides a combination of productivity, print quality, and precise ink placement.
This unlocked Epson I1600-A1 Water printhead is designed for compatible printer configurations using water-based or aqueous inks.
Manufacturer: Epson
Manufacturer Part Number: I1600-A1
Printhead Technology: PrecisionCore MicroTFP
Ink Type: Aqueous / Water-Based
Printhead Status: Unlocked
Key Features
- Genuine Epson I1600-A1 Water printhead
- 1,600-nozzle architecture with 4 nozzle rows
- 600 npi high-density resolution
- 1.33-inch (33.8 mm) effective print width
- Epson PrecisionCore MicroTFP technology
- Designed for compatible aqueous / water-based inks
- Unlocked printhead
- Variable droplet technology for detailed image reproduction and smooth tonal transitions
- Suitable for compatible DTF and digital printing systems
- Manufactured in Japan
Product Specifications
| Specification | Details |
|---|---|
| Manufacturer | Epson |
| Manufacturer Part Number | I1600-A1 |
| Printhead Type | PrecisionCore MicroTFP |
| Ink Type | Aqueous / Water-Based |
| Printhead Status | Unlocked |
| Nozzle Count | 1,600 |
| Nozzle Rows | 4 rows |
| Nozzle Pitch | 1/300 inch |
| Nozzle Resolution | 300 npi per row / 600 npi for 2 rows |
| Maximum Ink Colors | 4 colors |
| Effective Print Width | 33.8 mm / 1.33 inches |
| Dimensions | 69.1 × 59.4 × 35.6 mm |
| Weight | Approximately 80 g |
| Droplet Technology | Variable Droplet |
| Viscosity Range | 3–4 mPa·s |
| Positioning Mechanism | Reference Hole |
| Manufacturer Warranty | Included |
| Country of Origin | Japan |
Droplet Ejection Performance
The Epson I1600-A1 supports multiple droplet sizes for precise ink placement and high-quality image reproduction:
- Binary: 6 pl at 43.2 kHz
- 3-Level Grayscale: 6.3 / 12.3 pl at 21.6 kHz
- 4-Level Grayscale: 3.8 / 6.1 / 9.4 pl at 21.6 kHz
Why Choose the Epson I1600-A1 Water Printhead?
1,600-Nozzle Architecture
The I1600-A1 features 1,600 nozzles arranged across four rows, providing high nozzle density for efficient and reliable printing in compatible systems.
PrecisionCore MicroTFP Technology
Epson's PrecisionCore MicroTFP technology is engineered for precise ink droplet placement and consistent print output.
600 npi High-Density Resolution
The printhead supports up to 600 npi resolution across two nozzle rows, helping produce detailed graphics and smooth tonal transitions.
1.33-Inch Effective Print Width
With a 33.8 mm (1.33-inch) effective print width, the I1600-A1 is suitable for compact and multi-printhead configurations.
Variable Droplet Technology
Multiple droplet sizes provide greater control over ink placement, helping produce fine details, smoother gradients, and consistent image quality.
Unlocked Configuration
The unlocked I1600-A1 is intended for compatible printer systems specifically designed to operate with an unlocked Epson I1600-A1 printhead.
Printer Compatibility
The Epson I1600-A1 Water printhead is compatible with select printer configurations, including:
- Infiniti FY-200A
- Infiniti FY-AF230
- Sublistar DTF-300 Ultra A (All-in-One)
- Sublistar DTF-450 Ultra A (All-in-One)
- Sublistar DTF-mini 600 Ultra
- Sublistar DTX-4050I DTF
- Sublistar DTX-4050I DTG
Compatibility Note: Printer compatibility can vary depending on the printer's electrical configuration, firmware, ink system, printhead configuration, and manufacturer specifications. Please verify the exact printhead model and configuration required for your printer before ordering.
Installation Recommendation
We strongly recommend replacing the printhead cables when installing a new printhead. Using worn, damaged, or previously compromised cables may increase the risk of electrical issues or damage to the new printhead.
Professional installation is recommended. Always follow the printer manufacturer's installation, cleaning, ink-loading, and maintenance procedures.
Warranty & Return Policy
This printhead carries a manufacturer warranty, subject to the applicable manufacturer's warranty terms.
Due to the nature of DTF inks and other printing fluids, printheads are considered consumable/service components.
Once the printhead has been installed or exposed to ink, we cannot accept returns, exchanges, or refunds. All sales are final after installation or use.
Warranty Exclusions
The following conditions are expressly excluded from warranty coverage:
- Printer defects related in any way to clogged nozzles
- Defects resulting from the use of non-original or incompatible ink
- Clogged, missing, or deviated nozzles
- Damage caused by misuse, abuse, accident, neglect, or improper operation
- Damage caused by improper storage or extended periods of inactivity without appropriate maintenance
- Defects resulting from failure to perform required periodic maintenance according to the manufacturer's documentation
- Damage resulting from operation for unintended purposes
- Damage caused by improper media loading or handling
- Defects, failures, or damage that are not considered manufacturing defects
- Issues caused by third-party applications, software, parts, components, or peripheral devices, including bulk ink systems
- Cosmetic defects that do not affect the functional performance of the printhead
Please verify the exact printhead model, part number, printer compatibility, ink type, and configuration before installation.
If you are unsure whether the Epson I1600-A1 Water printhead is compatible with your printer, please contact us before placing your order.
