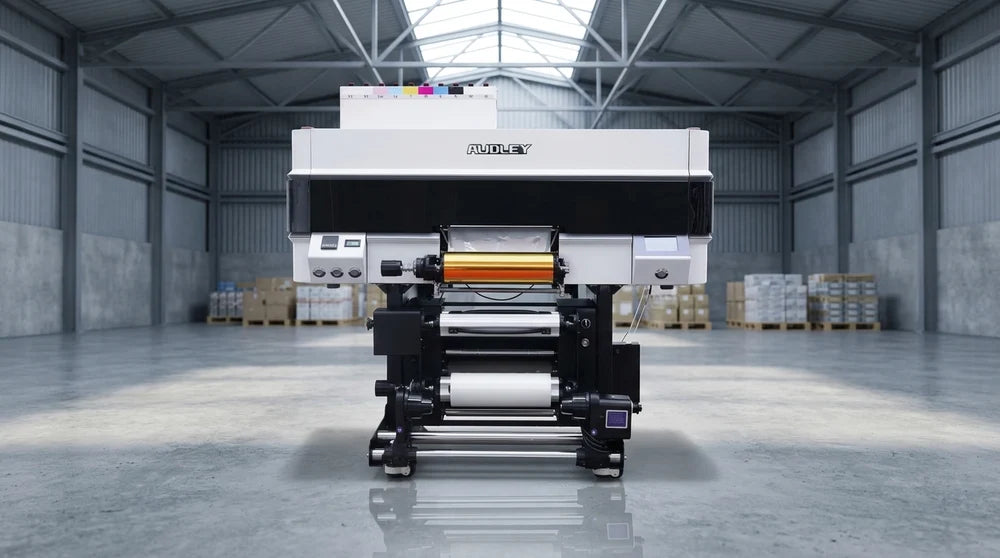

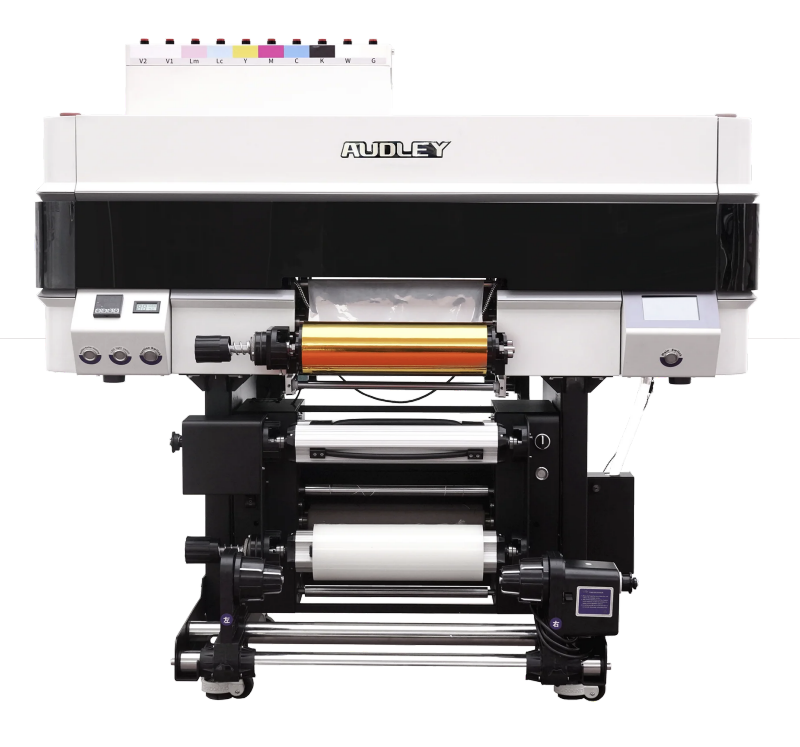

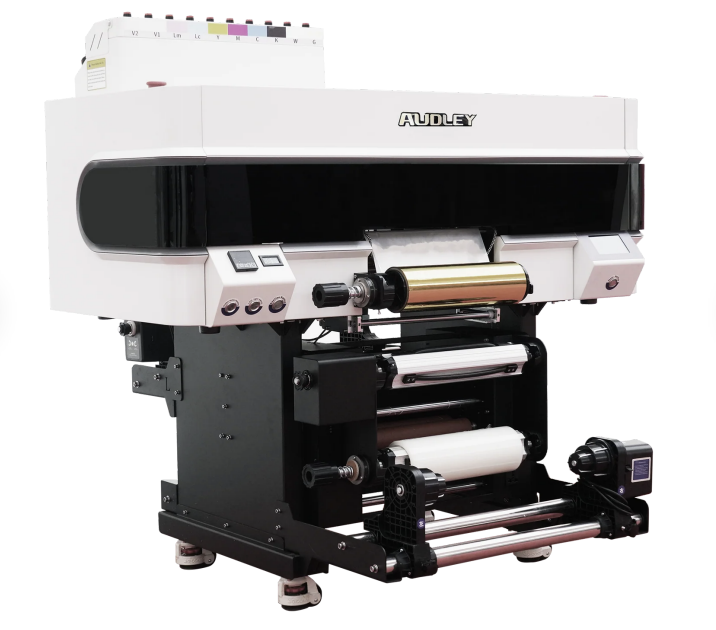

Audley ADL-03N04 12-Inch UV DTF Printer with Hot Foil – 4× Epson XP600

Premium UV DTF Crystal Label Printer with Built-In Hot Foil Lamination

Create premium UV DTF crystal labels, stickers, decals, and metallic-finish transfers with the Audley ADL-03N04 12-inch UV DTF Printer. Designed for professional print shops, customization businesses, promotional-product companies, and specialty label production, the ADL-03N04 combines four Epson XP600 printheads, UV LED curing, white-ink circulation, varnish printing, adhesive application, and temperature-controlled hot foil lamination in one compact production system.

With a print width of up to 12 inches (300 mm), the ADL-03N04 is engineered for producing high-quality UV DTF transfers with eye-catching gloss, dimensional effects, and optional gold or metallic hot-foil finishes.

Key Features

• 4 × Epson XP600 Printheads for high-resolution UV DTF production
• 12-inch (300 mm) maximum print width
• CMYK + Light Cyan + Light Magenta + White + Varnish + Adhesive
• Integrated UV LED curing system
• Built-in hot foil lamination for premium metallic finishes
• Temperature-controlled laminating rollers
• White-ink circulation and stirring system
• Dual-side adjustable film feeding
• High-precision linear guide system
• MainTop / PhotoPrint RIP compatibility
• Gigabit Ethernet connectivity
• AC 110–220V dual-voltage operation
• Compact all-in-one design for professional UV DTF production

Premium UV DTF Printing with Built-In Hot Foil

The ADL-03N04 combines multiple stages of the UV DTF workflow into a single machine.

The four Epson XP600 printheads apply the color, white, varnish, and adhesive layers, while the integrated UV LED curing system cures the ink during production. The film then moves through the temperature-controlled laminating section, where hot foil can be applied to create a premium metallic appearance.

This integrated workflow can help reduce the need for separate equipment while providing a streamlined solution for UV DTF crystal label and specialty transfer production.

Four Epson XP600 Printheads

The ADL-03N04 is equipped with four Epson XP600 printheads configured for professional UV DTF printing.

The multi-channel ink configuration supports:

• CMYK
• Light Cyan (Lc)
• Light Magenta (Lm)
• White
• Varnish
• Adhesive

The combination of color, white, varnish, and adhesive layers allows users to create detailed UV DTF transfers with strong visual contrast and glossy finishing effects.

White-Ink Circulation System

White ink requires consistent circulation to help maintain stable printing performance. The ADL-03N04 incorporates a white-ink circulation and stirring system designed to keep white ink moving through the ink system and reduce settling during operation.

Proper printer maintenance and following the manufacturer's recommended operating procedures remain important for printhead and ink-system performance.

Built-In Hot Foil Lamination

One of the defining features of the ADL-03N04 is its integrated hot foil lamination capability.

Temperature-controlled rollers combine the printed UV DTF film with compatible hot-stamping foil, allowing businesses to produce specialty transfers with a premium metallic appearance.

Depending on the compatible foil and production configuration, applications may include:

• Gold-effect labels
• Metallic-effect decals
• Premium product branding
• Promotional merchandise
• Specialty packaging
• Personalized gifts
• Decorative labels
• Custom logos and lettering

Foil appearance and adhesion can vary depending on the film, foil, substrate, artwork, and production settings. Testing is recommended before commercial production.

12-Inch UV DTF Printing for Professional Production

With a maximum print width of approximately 12 inches (300 mm), the ADL-03N04 provides a practical format for businesses producing UV DTF transfers, crystal labels, decals, and specialty graphics.

Its compact footprint makes it suitable for:

• Print shops
• Customization businesses
• Promotional-product companies
• Sign and graphics businesses
• Personalized gift businesses
• Specialty label producers
• Small-to-medium UV DTF production environments

Complete UV DTF Workflow in One Machine

The ADL-03N04 is designed to integrate the primary stages of UV DTF production:

Print → UV Cure → Laminate → Hot Foil

This integrated configuration can reduce the need for multiple machines and help simplify the production workflow.

Finished UV DTF transfers can be applied to many compatible hard and specialty surfaces, including items such as:

• Tumblers and drinkware
• Bottles
• Glass
• Metal
• Acrylic
• Plastic
• Phone cases
• Promotional products
• Gift items
• Awards and personalized merchandise

Always test the transfer on the intended substrate before production. Surface compatibility, adhesion, durability, and finish can vary by material and application.

Compact Design with Dual-Voltage Support

Despite its integrated production capabilities, the ADL-03N04 is designed as a compact, self-contained UV DTF production system.

The machine supports AC 110–220V input and is rated at approximately 1200W, making it suitable for installations where standard commercial electrical infrastructure is preferred.

Machine Dimensions

51.2 × 41.3 × 49.8 inches (130 × 105 × 126.5 cm)

Net Weight

Approximately 392 lb (178 kg)

Due to its weight and integrated components, appropriate equipment-handling procedures should be used during delivery and installation.

RIP Software & Connectivity

The ADL-03N04 supports MainTop / PhotoPrint RIP software and connects through Gigabit Ethernet.

Supported artwork formats include:

• TIFF
• JPEG

RIP software settings, color management, resolution, ink configuration, and production speed may affect final print quality and output.

Why Choose the Audley ADL-03N04?

Premium Hot-Foil Finishing

Add a distinctive metallic effect to compatible UV DTF transfers with the machine's integrated hot foil lamination system.

Four Epson XP600 Printheads

Four XP600 printheads provide a multi-channel configuration for color, white, varnish, and adhesive production.

Integrated Production Workflow

Printing, UV curing, lamination, and hot foil processing are integrated into one production platform.

12-Inch Production Width

A 12-inch (300 mm) print width provides a practical format for a wide range of UV DTF transfer applications.

Professional UV DTF Applications

Produce custom decals, crystal labels, branded merchandise, personalized products, specialty packaging, and decorative transfers.

Technical Specifications

What's Included

• Audley ADL-03N04 UV DTF Printer
• RIP software license
• Remote setup and operator training
• 1-year warranty support

Warranty & U.S. Support

The Audley ADL-03N04 includes 1-year warranty coverage on major machine components, excluding printheads and ink-system components, subject to the manufacturer's warranty terms.

Remote setup and operator training are included to help customers get started with their equipment.

U.S.-based technical support and parts availability are provided through the Audley support network, with equipment and support resources available from the Los Angeles warehouse.

Important Product Notes

• UV DTF performance depends on film, ink, artwork, RIP settings, environmental conditions, and substrate.
• Hot foil results may vary depending on the foil and film combination.
• Always test new films, foils, inks, and substrates before commercial production.
• Follow the manufacturer's recommended cleaning, maintenance, and storage procedures.
• Printheads and ink-system components are subject to specific warranty exclusions and should be handled according to manufacturer guidelines.
