xTool O1 Omni UV + DT Fabric Printer | 4-in-1 UV & Apparel Printer – Professional Plus Bundle

The xTool O1 Omni UV + DT Fabric Printer combines UV printing and fabric printing in a compact A3+ desktop platform. Designed for small businesses, personalization shops, apparel decorators, makers, and print professionals, this configuration allows you to work with both rigid products and apparel using dedicated UV and fabric printing systems.

With dual Epson F1080 printheads, Pixel-Scan™ vision technology, Smart Cycle 2.0 maintenance features, up to 7mm raised UV texture, and dedicated fabric printing capabilities, the O1 Omni UV + DT Fabric Edition can support a wide range of products—from custom acrylic signs and promotional products to T-shirts, hoodies and other compatible apparel.

The system combines UV direct-to-object printing, UV DTF workflows, direct-to-fabric printing and raised UV effects in one desktop platform, making it a versatile option for businesses expanding their personalization and apparel product lines.

Why Choose the xTool O1 Omni UV + DT Fabric Printer?

UV + Fabric Printing in One Desktop Platform

The O1 Omni UV + DT Fabric Edition is designed for businesses that want to work with both hard goods and textiles without maintaining separate desktop printing platforms for every application.

Depending on the selected workflow, you can produce:

• Direct UV-printed hard goods
• UV DTF transfers
• Direct-to-fabric apparel
• Raised UV graphics
• Personalized promotional products
• Custom apparel and merchandise

This combination can be useful for businesses offering coordinated product packages, such as branded T-shirts with matching promotional items, personalized gifts or event merchandise.

Direct-to-Fabric Printing for Apparel

The dedicated fabric printing system is designed for direct printing on compatible textiles.

Potential apparel applications include:

• T-shirts
• Hoodies
• Apparel blanks
• Cotton garments
• Polyester garments
• Suitable fabric blends
• Custom promotional apparel

The included garment tray and fabric frame help position compatible garments for direct fabric printing.

Always test the specific garment, fabric composition, pretreatment and print settings before commercial production.

UV DTF Printing for Hard-to-Print Products

The O1 Omni can also be incorporated into a UV DTF transfer workflow.

UV DTF transfers are particularly useful for decorating compatible:

• Curved products
• Irregular-shaped objects
• Tumblers
• Bottles
• Promotional products
• Gift items
• Hard goods that are difficult to position directly under a UV printhead

A compatible UV DTF laminator is required for a complete transfer-production workflow.

A3+ UV Direct-to-Object Printing

The UV printing system provides a maximum print area of 13" × 16.5" (330 × 420 mm).

Compatible UV printing applications can include:

• Acrylic
• Wood
• Metal
• Glass
• Ceramic
• Promotional products
• Awards
• Plaques
• Phone cases
• Decorative items
• Signage

Material compatibility depends on the substrate, surface coating and application. Testing is recommended before production.

Up to 7mm Raised UV Texture

The O1 Omni UV system supports raised printing effects up to 7mm (0.28").

This can add dimensional and tactile effects to compatible products such as:

• Awards
• Plaques
• Acrylic signs
• Phone cases
• Decorative products
• Corporate gifts
• Branded merchandise

Raised UV output depends on artwork, substrate and printer settings.

Pixel-Scan™ Vision System

The O1 Omni incorporates Pixel-Scan™ vision technology with a reported vision resolution of 1440 × 1200 dpi and positioning accuracy of approximately ±0.2 mm.

The vision system is designed to help identify product placement and improve artwork positioning on compatible objects.

It can be useful for:

• Personalized products
• Pre-existing objects
• Irregular-shaped items
• Textured products
• Small-batch personalization
• Repeat product positioning

Actual positioning performance can vary depending on the object, surface and operating conditions.

Smart Cycle 2.0 Maintenance

UV printing systems require regular maintenance, particularly when white ink is used. The O1 Omni includes Smart Cycle 2.0 maintenance features designed to simplify routine printer care.

Features include:

• White ink circulation
• Printhead moisture protection
• Multiple cleaning modes
• Vacation Mode for extended idle periods
• Ceramic heating technology
• Remote cleaning functionality through the xTool software ecosystem

Regular maintenance and following the manufacturer's operating procedures remain important for consistent print quality.

What Can You Make With the xTool O1 Omni UV + DT Fabric Printer?

The combination of UV and fabric printing opens up several product categories for personalization businesses.

Custom Apparel

Produce personalized:

• T-shirts
• Hoodies
• Promotional apparel
• Event merchandise
• Team apparel
• Custom branded garments

Personalized Hard Goods

Create customized:

• Acrylic products
• Wood signs
• Phone cases
• Awards
• Plaques
• Promotional products
• Home décor
• Personalized gifts

Tumblers, Bottles & Drinkware

With a compatible rotary attachment, the UV system can support cylindrical-product applications such as:

• Tumblers
• Bottles
• Mugs
• Travel cups
• Promotional drinkware

Corporate & Event Merchandise

Combine apparel and hard-goods printing for:

• Corporate branding
• Trade-show merchandise
• Event products
• Promotional campaigns
• Personalized employee gifts
• Retail merchandise

UV DTF Transfers

Produce UV DTF transfers for suitable hard and irregular surfaces using compatible UV DTF film and laminating equipment.

xTool O1 Omni UV + DT Fabric Specifications

Specification	Details
Printer Type	Desktop UV + Direct-to-Fabric Printer
Printheads	2 × Epson F1080
UV Printhead	Dedicated UV printing system
Fabric Printhead	Dedicated fabric printing system
Maximum Print Area	13" × 16.5" / 330 × 420 mm
Print Format	A3+
Print Resolution	Up to 720 × 1440 dpi
Maximum Raised UV Texture	Up to 7 mm / 0.28"
UV Ink Configuration	CMYK + White + Varnish + DT
Fabric Ink Configuration	CMYK + White
Fabric Ink	OEKO-TEX® certified, as specified by manufacturer
Vision System	Pixel-Scan™
Vision Resolution	1440 × 1200 dpi
Positioning Accuracy	±0.2 mm
Maintenance	Smart Cycle 2.0
Operating System	Windows & macOS
Main Unit Dimensions	28.1" × 14.7" × 18.4"
Metric Dimensions	714 × 374 × 468.5 mm
Weight	90.7 lbs / 41.12 kg
Warranty	12 months

O1 Omni UV + DT Fabric vs. Other O1 Omni Configurations

The O1 Omni platform is available in different configurations designed around different production requirements.

Feature	Single UV	Dual-Head UV	UV + DT Fabric
UV Direct-to-Object	✓	✓	✓
UV DTF Workflow	✓	✓	✓
A3+ UV Printing	✓	✓	✓
7mm Raised UV Texture	✓	✓	✓
Pixel-Scan™ Vision	✓	✓	✓
Smart Cycle 2.0	✓	✓	✓
Fluorescent UV	—	✓	—
Flexible White UV	—	✓	—
Direct Fabric Printing	—	—	✓
DTG Apparel Workflow	—	—	✓
DTF Apparel Workflow	—	—	✓
Garment Tray	—	—	✓
Best For	UV + UV DTF	Specialty UV	UV + apparel

Choose the Single UV Edition If:

Your primary focus is:

• Standard UV printing
• Personalized hard goods
• UV DTF
• Acrylic, wood and other compatible rigid products
• Desktop UV personalization

Choose the Dual-Head UV Edition If:

You need expanded UV capabilities such as:

• Fluorescent UV printing
• Flexible White
• Specialty UV applications
• Flexible-material workflows

Choose the UV + DT Fabric Edition If:

You want to combine:

• UV printing
• UV DTF
• Direct fabric printing
• DTF apparel workflows
• DTG-style apparel applications

This configuration is particularly relevant for businesses serving both apparel and personalized hard-goods markets.

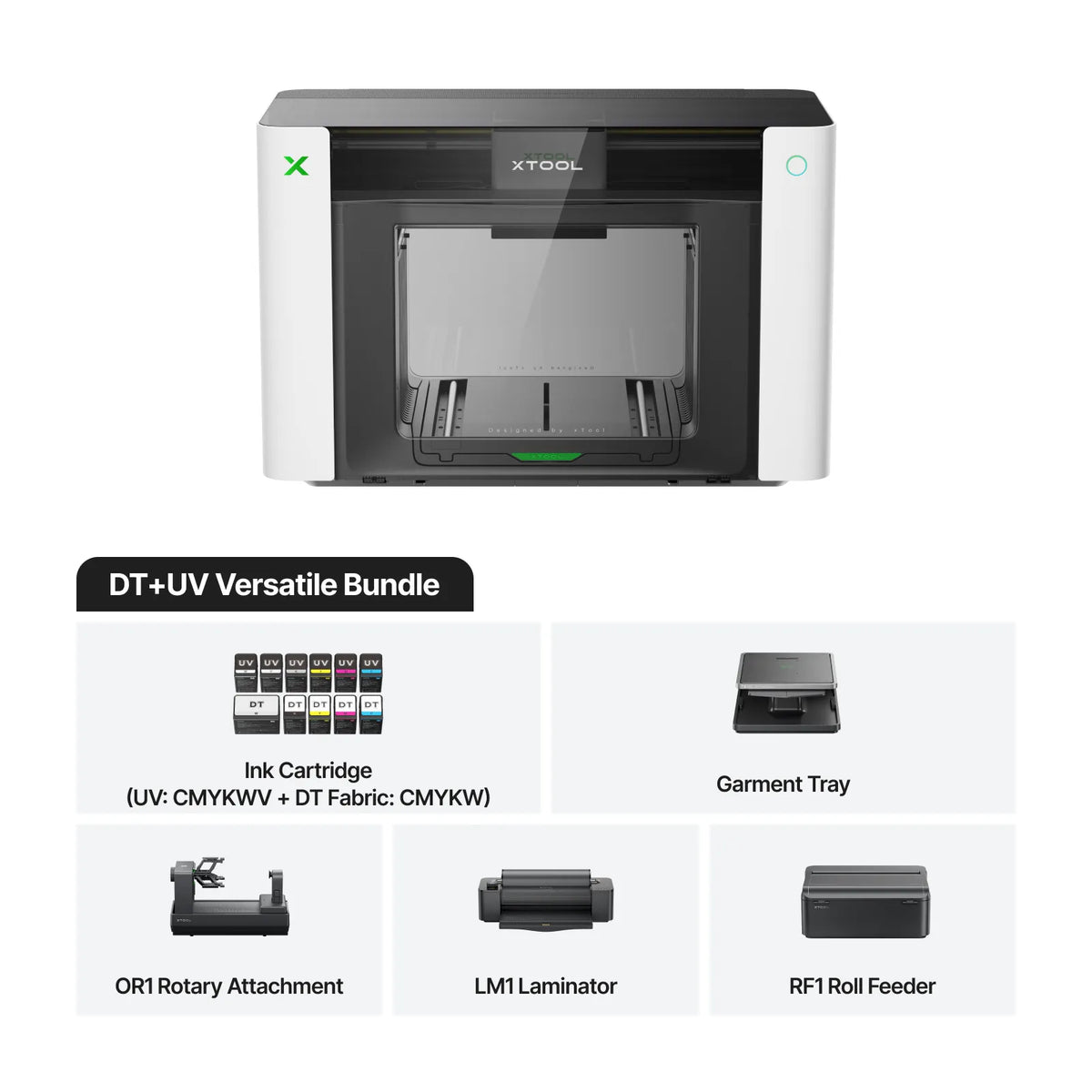

xTool O1 Omni UV + DT Fabric Printer Professional Plus Bundle Includes

• xTool O1 Omni UV + DT Fabric Printer
• xTool O1 Omni OR1 Rotary Attachment for UV Printing (Cups and Tumblers)
• xTool O1 Omni RF1 Roll Feeder Attachment for Direct to Object Roll Printing
• xTool O1 Omni LM1 Laminator Attachment for Direct to Film Rolls & Sheets
• Full CMYK + White UV Ink Cartridge Set
• Full CMYK + White DT Fabric Ink Cartridge Set
• Garment Tray with Fabric Frame
• Varnish Cartridge
• UV Moisturizing Liquid Cartridge
• DT Moisturizing Liquid Cartridge
• Standard Flatbed Platform Baseplate
• Mini Flatbed Platform Baseplate
• Standard Reusable Adhesive Platform Mat
• Mini Reusable Adhesive Platform Mat
• xTool Studio Workspace Software
• 2 Waste Ink Cartridges
• Air Filter
• Safety Glasses
• Air Exhaust Pipe
• Nitrile Gloves
• Lubricating Oil
• Screwdriver & Tweezers
• 4 Ink Absorber Foam Pads
• Cotton Cleaning Swabs
• 3 Sample Fridge Magnet Blanks
• 18 Ink Extractors
• 4 Ink Tube Plugs
• 2 Spare Ink Scrapers
• Power Cable
• USB Cable
• Quick Start Guide
• Safety Instructions

Warranty: 1-year xTool warranty, subject to the manufacturer's applicable warranty terms.

Why Buy the xTool O1 Omni UV + DT Fabric from DTF Gears?

At DTF Gears, we help U.S. businesses select printing equipment based on their products, production requirements and growth plans.

Our team can assist with:

• xTool printer configuration
• UV printing applications
• UV DTF workflows
• Apparel printing workflows
• Product and material compatibility
• Setup guidance
• Maintenance questions
• Accessories and consumables
• Financing options
• Technical support

If you're deciding between the O1 Omni Single UV, Dual-Head UV and UV + DT Fabric Editions, we can help you understand the practical differences between each configuration.

Financing Options

Flexible financing may be available through participating financing providers, subject to approval and current program availability.

Contact DTF Gears for current financing and qualification information.

Frequently Asked Questions

What is the xTool O1 Omni UV + DT Fabric Printer?

The xTool O1 Omni UV + DT Fabric is a desktop A3+ printing platform that combines UV direct-to-object printing with dedicated fabric printing capabilities. It can also be incorporated into UV DTF and DTF apparel workflows.

Is the xTool O1 Omni UV + DT Fabric a DTF printer?

The UV + DT Fabric configuration supports DTF apparel workflows in addition to direct fabric printing and UV printing. The exact workflow, consumables and accessories depend on the application.

Can the O1 Omni print T-shirts?

Yes. The UV + DT Fabric Edition is designed for direct fabric printing on compatible apparel and includes a garment tray and fabric frame.

What fabrics can the O1 Omni print?

The fabric system is designed for compatible textiles including cotton, polyester and suitable fabric blends. Always test specific garments before commercial production because fabric construction, coatings and pretreatment can affect results.

Can the O1 Omni print hoodies?

Yes, compatible hoodies and other apparel can be used with the fabric-printing system, subject to garment size, thickness and platen compatibility.

Can it print DTF transfers?

The UV + DT Fabric Edition supports DTF apparel workflows. UV DTF is a separate process used primarily for decorating suitable hard goods and irregular surfaces.

What is the difference between DTF and UV DTF?

DTF is primarily an apparel-decoration process where designs are printed onto transfer film, powdered, cured and heat pressed onto suitable textiles.

UV DTF uses UV-curable inks and transfer film to create decals that can be applied to compatible hard surfaces such as promotional products, containers and other objects.

Can the O1 Omni print tumblers?

The UV system can support compatible cylindrical products when used with the appropriate rotary accessory and workflow.

Can the O1 Omni print acrylic?

Yes. Acrylic is a common UV-printing application, although the specific acrylic surface should be tested for adhesion and finish.

How large is the O1 Omni print area?

The maximum UV print area is 13" × 16.5" (330 × 420 mm), providing an A3+ format.

Can it create raised 3D UV prints?

Yes. The UV system supports raised effects up to 7mm (0.28"), depending on the artwork, substrate and print settings.

Is the O1 Omni UV + DT Fabric suitable for a small business?

The desktop format and combination of UV and fabric-printing capabilities can make it suitable for businesses offering personalized apparel and hard goods. Production volume, product mix, workspace and workflow requirements should be considered before purchase.

Expand Into UV, DTF & Apparel Printing

The xTool O1 Omni UV + DT Fabric Printer combines multiple personalization workflows in a compact A3+ platform.

With dual Epson F1080 printheads, UV direct-to-object printing, UV DTF capabilities, direct fabric printing, DTF apparel workflows, Pixel-Scan™ vision and up to 7mm raised UV texture, it provides businesses with a broad range of options for customized apparel, promotional products and personalized hard goods.

If your business wants to offer both custom apparel and UV-printed products, the O1 Omni UV + DT Fabric Edition provides a single platform around which you can build multiple product categories.

Contact DTF Gears to compare the O1 Omni Single UV, Dual-Head UV and UV + DT Fabric configurations and determine which setup fits your products and production requirements.
