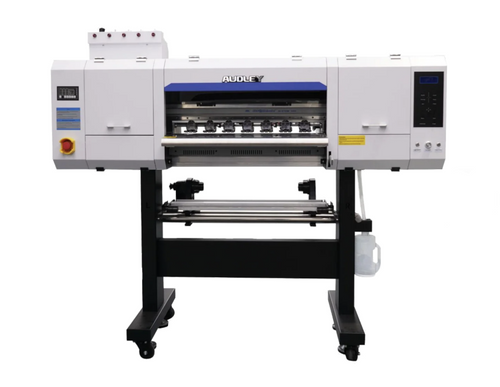

Audley 24" DTF Printer - 4 Head (S8074-3) with 4 x Epson i3200-A1 Printheads
Features
- Anti-clog automatic white ink circulation
- Epson printhead with automated cleaning cycle
- One-click ink setup — no syringes or funnels
- Includes remote setup support from our technician
Secure checkout
SKU: Audley24InPrinter4Head
About this product
High-Speed 24-Inch DTF Printer for Commercial & High-Volume Printing
Take your direct-to-film printing operation to the next level with the Audley S8074-3 60cm DTF Printer, featuring 4 × Epson i3200-A1 printheads and a maximum print speed of 26 m²/h.
Designed for commercial DTF printing businesses, apparel decorators, garment manufacturers, print shops, and growing transfer-production operations, the S8074-3 provides a wider 24-inch (60cm) print area and a four-printhead configuration built for higher production capacity.
Key Features
- 4 × Epson i3200-A1 Printheads
- Up to 26 m²/h Print Speed
- 24-inch / 60cm Maximum Working Width
- CMYK + White Pigment Ink
- Four-Station Ink System
- Precision Pinch Roller Media Transport
- Industrial Control System
- Touchscreen Control Panel
- AC 220V / 50Hz, 1,500W
- Free Remote Setup & Operator Training
- 1-Year Warranty Support
- U.S.-Based Technical Support
- Local Parts Availability
Four Epson i3200-A1 Printheads for Higher Production Capacity
The four-head architecture increases printing capacity compared with lower-head-count DTF systems while maintaining the same 24-inch / 60cm workflow — suited to larger order volumes, wholesale apparel orders, custom garment production, and time-sensitive transfer jobs.
Up to 26 m²/h DTF Printing Speed
- 4-Pass: Up to 26 m²/h
- 6-Pass: Up to 18 m²/h
- 8-Pass: Up to 12 m²/h
Actual production output can vary depending on artwork, ink coverage, RIP settings, media, print configuration, and operating conditions.
24-Inch / 60cm DTF Printing
The 60cm format provides additional space for arranging multiple designs on a single sheet of DTF film, helping apparel businesses efficiently produce:
- T-shirt transfers
- Hoodie transfers
- Large garment graphics
- Custom apparel
- Sportswear
- Workwear and uniforms
- Promotional clothing
- Wholesale DTF transfers
- Personalized garments
- Commercial apparel orders
Four-Station Ink System
A four-station ink system supports the four Epson i3200-A1 printheads, supporting ink delivery, printhead maintenance, and reliable day-to-day operation. Regular maintenance and proper ink handling remain important for print quality and printhead performance.
Precision Film Handling & Touchscreen Control
Precision pinch rollers maintain controlled film movement — particularly important when producing wider gang sheets — while the touchscreen control panel gives production teams centralized access to machine functions.
U.S.-Based Support, Training & Warranty
Every machine is backed by U.S.-based technical support with parts stocked in our Los Angeles warehouse.
- Free remote machine setup
- Free operator training
- 1-year warranty support
- U.S.-based technical support
- Local parts availability
Our technical team can assist remotely with setup, basic operation, and troubleshooting, and can coordinate replacement parts from available U.S. inventory.
1-Year Warranty
Includes a 1-year warranty covering major machine components, excluding printheads and ink-system components.
Technical Specifications
| Model | S8074-3 |
| Printheads | 4 × Epson i3200-A1 |
| Print Technology | Direct-to-Film (DTF) |
| Control System | Industrial control system |
| Ink | Pigment Ink – CMYK + White |
| Maximum Working Width | Up to 24 in (60cm) |
| Print Speeds | 4-Pass: up to 26 m²/h | 6-Pass: up to 18 m²/h | 8-Pass: up to 12 m²/h |
| Voltage | AC 220V, 50Hz |
| Power | 1,500W |
| Operating Environment | 64–86°F (18–30°C) |
| Packing Size | 91 × 30 × 34 in (230 × 76 × 86 cm) |
| Weight | 600 lb (272 kg) |
What's Included
- Audley S8074-3 60cm DTF Printer
- 4 × Epson i3200-A1 Printheads
- Industrial Control System
- RIP Software License
- Remote Machine Setup
- Remote Operator Training
- 1-Year Warranty Support
- U.S.-Based Technical Support
Why Choose the Audley S8074-3?
The S8074-3 is designed for businesses that need to increase direct-to-film printing capacity without moving to a wider film format.
Four i3200 Heads. 60cm Printing. Up to 26 m²/h. Built for Higher DTF Production.
