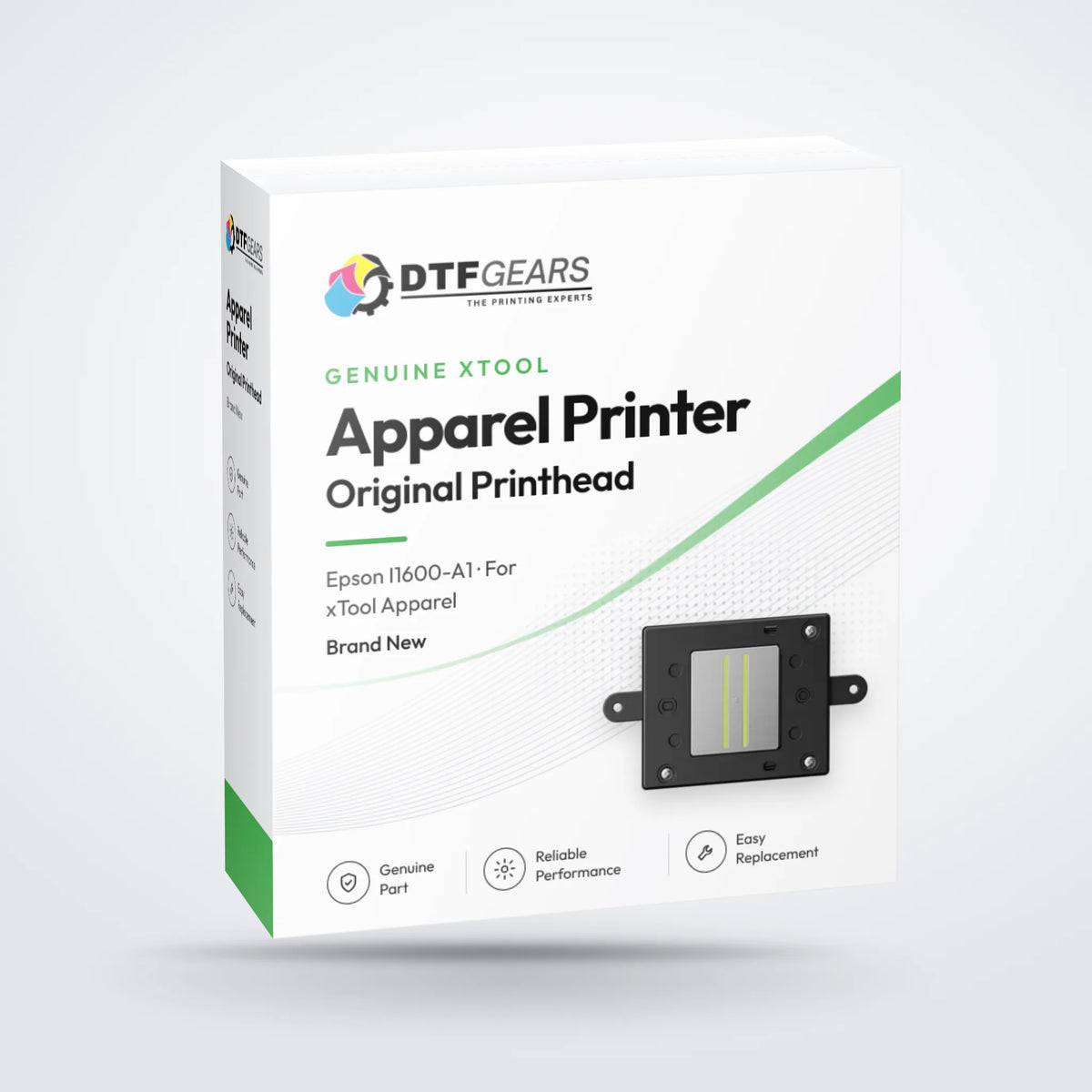

xTool Apparel Printer Printhead – Genuine Epson i1600-A1
Features
- Anti-clog automatic white ink circulation
- Epson printhead with automated cleaning cycle
- One-click ink setup — no syringes or funnels
- Includes remote setup support from our technicians
Free shipping over $299
Continental US, standard ground
Same-day dispatch
On orders placed before 12pm PST
Authorized distributor
Genuine equipment, full warranty
Financing available
Affirm and Clicklease at checkout
Secure checkout
SKU: XT-AP-Printhead
Overview
About this product
The xTool Apparel Printer Printhead (Epson I1600-A1) is a genuine OEM Epson PrecisionCore printhead engineered for high-resolution DTF apparel printing and aqueous ink applications. Designed for speed, accuracy, and long-term reliability, this original Epson I1600-A1 printhead delivers sharp detail, smooth gradients, and consistent ink output—making it ideal for professional DTF printers, white ink systems, and commercial apparel production.
Key Features & Benefits
Genuine OEM Epson I1600-A1 Printhead
Original Epson-manufactured printhead, fully compatible with the xTool Apparel Printer, ensuring stable performance, accurate color reproduction, and long service life.
PrecisionCore MEMS Technology
Advanced Epson PrecisionCore technology with high-density MEMS nozzles produces perfectly round ink droplets, ensuring precise placement, sharp text, and clean edges at high speeds.
Variable Droplet & Grayscale Printing
Epson's Variable Sized Droplet Technology (VSDT) supports multi-level grayscale output, delivering smooth gradients, consistent ink density, and improved image quality—especially critical for white ink DTF printing.
High Resolution & Fine Detail
Features 1,600 nozzles (4 rows × 400 nozzles) with a native resolution of 600 DPI, producing ultra-fine details with a minimum droplet size of 3.8 picoliters.
Built for Aqueous & DTF Ink Systems
Optimized for water-based inks, including CMYK and white ink, with excellent durability and stable ink ejection for continuous production environments.
Technical Specifications
- Product Name: Epson I1600-A1 Printhead
- Ink Type: Aqueous (Water-Based / DTF)
- Number of Nozzles: 1,600
- Nozzle Configuration: 4 rows × 400 nozzles
- Nozzle Pitch: 1/300 inch
- Nozzle Resolution:
- 300 npi per row
- 600 npi using two rows
- Maximum Color Channels: 4 colors
- Effective Print Width: 1.33 in (33.8 mm)
Droplet Ejection Performance
- Binary Mode: ~6 pL at up to 40 kHz
- 3-Level Grayscale: ~6.3 / 12.3 pL at 21.6 kHz
- 4-Level Grayscale: ~3.8 / 6.1 / 9.4 pL at 21.6 kHz
- Minimum Droplet Size: Approx. 3.8 pL
- Ink Viscosity Range: 3–4 mPa·s
- Dimensions (W × D × H): 2.72 × 2.33 × 1.40 in
- Weight: Approx. 3 oz
Ideal For
- xTool Apparel Printer replacement printhead
- DTF printer printhead upgrades
- White ink DTF printing
- Professional apparel and textile printing
- Commercial aqueous ink printing systems
Frequently Asked Questions
What Printing Technology Does the xTool Apparel Printer Use?
The xTool Apparel Printer uses advanced DTF (Direct-to-Film) printing technology, enhanced with a fully integrated baking system. It automates powder application, shaking, and curing—tasks typically done manually on traditional DTF printers.
With one click, your design is printed and cured in just 8 minutes. Simply heat-press the film onto any fabric. The all-in-one software lets you manage design and printing in a single program, eliminating the need for multiple tools and making DTF printing faster and beginner-friendly.
With one click, your design is printed and cured in just 8 minutes. Simply heat-press the film onto any fabric. The all-in-one software lets you manage design and printing in a single program, eliminating the need for multiple tools and making DTF printing faster and beginner-friendly.
What Are the Advantages of the xTool Apparel Printer Compared to Screen Printing and Sublimation?
Compared to screen printing, the xTool Apparel Printer is ideal for custom and personalized apparel printing. It easily handles multi-color designs and intricate graphics in a single print, delivering greater detail and clarity than traditional screen printing. Its fully automated maintenance system also eliminates most manual cleaning, saving time and improving production efficiency.
Unlike sublimation printing, which is limited to light-colored polyester fabrics, the xTool Apparel Printer works on all fabric types and colors. It performs exceptionally well on cotton and polyester, producing vibrant, durable prints that remain bright and wash-resistant over time.
Unlike sublimation printing, which is limited to light-colored polyester fabrics, the xTool Apparel Printer works on all fabric types and colors. It performs exceptionally well on cotton and polyester, producing vibrant, durable prints that remain bright and wash-resistant over time.
Is the xTool Apparel Printer Difficult to Maintain?
Not at all. The xTool Apparel Printer is designed for easy, worry-free maintenance with a fully automated lifecycle management system. When the printer remains plugged in, it continuously monitors internal temperature and humidity, automatically performing printhead cleaning and white ink circulation to prevent clogging.
You can track key performance metrics through the xTool mobile app, which provides real-time status updates. If the system detects an issue it can’t resolve automatically, the app sends clear alerts with step-by-step guidance, ensuring minimal downtime and hassle-free operation.
You can track key performance metrics through the xTool mobile app, which provides real-time status updates. If the system detects an issue it can’t resolve automatically, the app sends clear alerts with step-by-step guidance, ensuring minimal downtime and hassle-free operation.
What Is the Warranty for the xTool Apparel Printer? How Can You Extend the Printhead Warranty to 6 Months?
The xTool Apparel Printer and shaker oven come with a standard 12-month warranty. The printhead warranty covers one printhead for 1 month.
How to Extend the Printhead Warranty to 6 Months:
1. Use Official xTool Consumables
Only xTool-approved inks and consumables qualify for the extended warranty.
2. Complete Online Training
Attend the xTool online video training to gain essential knowledge of printer operation and maintenance.
3. Pass the Certification Quiz
Successfully complete a short quiz to demonstrate your understanding of proper usage and basic troubleshooting.
Details about the training materials and quiz will be emailed to you before your shipment is delivered. For the latest updates, terms, and eligibility rules, please stay connected with our official DTF Gears Facebook group.
How to Extend the Printhead Warranty to 6 Months:
1. Use Official xTool Consumables
Only xTool-approved inks and consumables qualify for the extended warranty.
2. Complete Online Training
Attend the xTool online video training to gain essential knowledge of printer operation and maintenance.
3. Pass the Certification Quiz
Successfully complete a short quiz to demonstrate your understanding of proper usage and basic troubleshooting.
Details about the training materials and quiz will be emailed to you before your shipment is delivered. For the latest updates, terms, and eligibility rules, please stay connected with our official DTF Gears Facebook group.
Is xTool DTF Film Hot Peel or Cold Peel? Will It Affect Workflow Efficiency?
The DTF film sold by xTool is hot peel, also referred to as warm peel. This means you can peel the film while it’s still warm, without waiting for it to cool down to room temperature.
Although peeling at higher temperatures may occur before the adhesive powder fully solidifies (above 110°C / 230°F), the warm-peel process is designed to deliver consistent results while saving time. By eliminating long cooling delays, xTool’s DTF film significantly improves workflow efficiency, making it ideal for high-volume and commercial apparel printing.
Although peeling at higher temperatures may occur before the adhesive powder fully solidifies (above 110°C / 230°F), the warm-peel process is designed to deliver consistent results while saving time. By eliminating long cooling delays, xTool’s DTF film significantly improves workflow efficiency, making it ideal for high-volume and commercial apparel printing.
Can You Use Third-Party Ink or DTF Film with xTool?
xTool does not recommend third-party inks, as they may cause printhead clogging and impact print quality and printer lifespan. For optimal performance and warranty safety, xTool official inks are strongly recommended.
For DTF film:
- When not using an xTool shaker or baking system, third-party film may be used if powder application and curing are done manually.
- When using the xTool OS1 Shaker Oven Machine, only xTool-approved DTF film is supported, as the system is specifically calibrated for it.
Using genuine xTool consumables ensures maximum reliability, consistent results, and smooth operation.
For DTF film:
- When not using an xTool shaker or baking system, third-party film may be used if powder application and curing are done manually.
- When using the xTool OS1 Shaker Oven Machine, only xTool-approved DTF film is supported, as the system is specifically calibrated for it.
Using genuine xTool consumables ensures maximum reliability, consistent results, and smooth operation.
Is the xTool Apparel Printer Compatible with All Fabrics? Are the Prints Washable?
Yes. The xTool Apparel Printer is compatible with all fabric types and colors, making it ideal for a wide range of apparel applications. It delivers outstanding results on cotton and polyester, the most commonly used materials in clothing.
Prints produced with the xTool Apparel Printer are highly durable and washable, withstanding 50–100 wash cycles while retaining their vibrant colors, sharp details, and overall print integrity.
Prints produced with the xTool Apparel Printer are highly durable and washable, withstanding 50–100 wash cycles while retaining their vibrant colors, sharp details, and overall print integrity.
What Is the Cost to Print a T-Shirt with the xTool Apparel Printer?
Using the xTool Apparel Printer, the cost to print one A3-sized DTF transfer—including xTool film, ink, and hot-melt powder—is approximately $0.80. A blank T-shirt purchased in bulk typically costs $3–$5.
This brings the total production cost per T-shirt to around $4–$6. In the U.S. market, custom printed T-shirts usually retail for $20–$40, allowing for a potential profit margin of $14–$36 per shirt, depending on pricing and volume.
This brings the total production cost per T-shirt to around $4–$6. In the U.S. market, custom printed T-shirts usually retail for $20–$40, allowing for a potential profit margin of $14–$36 per shirt, depending on pricing and volume.
What Is the Recommended Temperature for the xTool OS1 Shaker Oven? Is Preheating Required?
For optimal curing performance, the xTool OS1 Shaker Oven should be set to approximately 110°C (230°F). This temperature ensures proper melting and bonding of the hot-melt powder for durable, high-quality DTF prints.
Preheating is strongly recommended and can be easily activated from the printer’s control panel. For best results, allow the OS1 to preheat for about 20 minutes. While the machine can be used without preheating, skipping this step may result in less consistent or suboptimal curing quality.
Preheating is strongly recommended and can be easily activated from the printer’s control panel. For best results, allow the OS1 to preheat for about 20 minutes. While the machine can be used without preheating, skipping this step may result in less consistent or suboptimal curing quality.
How Should xTool DTF Film Be Heat-Pressed? Is Double Pressing Necessary?
For best results, xTool recommends pressing at least twice, as double pressing improves adhesion, durability, and wash resistance (with pressure above 0.7 MPa).
Recommended Heat Press Process:
1. Preheat the Fabric
Place the garment on the heat press and preheat for 6 seconds to remove moisture and wrinkles.
2. First Press
Temperature: 160°C (320°F)
Time: 6 seconds
After pressing, move the garment to a cooler area and allow it to cool for 10–20 seconds, then peel the film promptly.
3. Second Press (Recommended)
Place the design back in the same position and press again using the same settings: 160°C for 6 seconds. For best pressure distribution, position the design in the center of the heat press.
4. Optional Third Press (Large Designs)
For large print areas, a third press is recommended. Reposition the top and bottom sections of the design into the center of the press and re-press each area using 160°C for 6 seconds.
Following this pressing method ensures strong bonding, smooth finish, and long-lasting xTool DTF prints.
Recommended Heat Press Process:
1. Preheat the Fabric
Place the garment on the heat press and preheat for 6 seconds to remove moisture and wrinkles.
2. First Press
Temperature: 160°C (320°F)
Time: 6 seconds
After pressing, move the garment to a cooler area and allow it to cool for 10–20 seconds, then peel the film promptly.
3. Second Press (Recommended)
Place the design back in the same position and press again using the same settings: 160°C for 6 seconds. For best pressure distribution, position the design in the center of the heat press.
4. Optional Third Press (Large Designs)
For large print areas, a third press is recommended. Reposition the top and bottom sections of the design into the center of the press and re-press each area using 160°C for 6 seconds.
Following this pressing method ensures strong bonding, smooth finish, and long-lasting xTool DTF prints.
